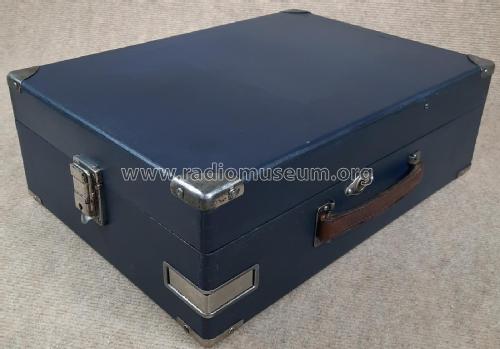

Telefunken-Koffer TP100b Golf

Telefunken-Koffer TP100b Golf; Telefunken (ID = 435374) TalkingM Telefunken-Koffer TP100b Golf; Telefunken (ID = 272696) TalkingM
Use red slider bar for more.
Telefunken-Koffer TP100b Golf; Telefunken (ID = 435374) TalkingM
Telefunken: Telefunken-Koffer TP100b Golf [TalkingM] ID = 435374 592x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telefunken-Koffer TP100b Golf, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Hauptverzeichnis der Telefunkenplatten 1937/38

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1937–1939 Category: Talking machine - Mechanical Gramophone/Phonograph
Wave bands - without
Details Record Player (not changer)
Power type and voltage Solar- and/or muscle driven, also addl. power jack possible
Loudspeaker Horn
Power out
from Radiomuseum.org Model: Telefunken-Koffer TP100b Golf - Telefunken Deutschland TFK,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 140 x 405 mm / 11.4 x 5.5 x 15.9 inch
Notes Koffer-Grammophon mit Federmotor zum Abspielen von 78er Schellack-Platten. Farben: Blau, Grün und Schwarz. Modellbezeichnung 1937-1938 TP 100b,ab 1939 "Golf"
Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Price in first year of sale 65.00 RM
Source of data -- Original prospect or advert
Mentioned in Hauptverzeichnis der Telefunkenplatten 1937/38

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
