L500G
Use red slider bar for more.

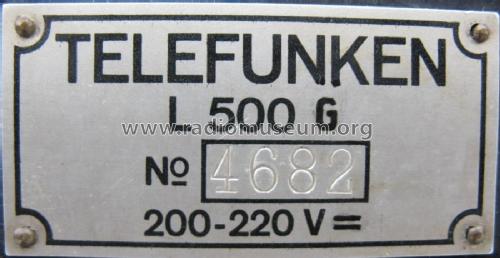

Telefunken: L500G [Speaker-P] ID = 2037543 1118x1157
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1929/1930 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | Direct Current supply (DC) / 200 - 220 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: L500G - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Notes | L500G für Felderregung am Gleichstromnetz. Siehe auch L500. |
Model page created by a member from D. See "Data change" for further contributors.
