Telefunken: Lautsprecher Box TL 600 [Speaker-P] ID = 1294868 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1974 ? | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | 3 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: Lautsprecher Box TL 600 - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 330 x 465 x 125 mm / 13 x 18.3 x 4.9 inch |
| Notes | Telefunken Lautsprecher Box TL 600; Tiefton 204 mm, Mittelton 110 mm, Hochton 28 mm, Nennbelastbarkeit 40 Watt, Musikbelastbarkeit 55 Watt, Übertragungsbereich 40 - 20000 Hz an 4 Ohm |

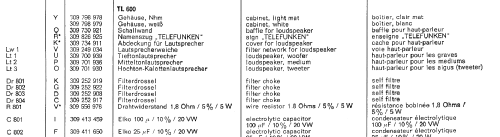

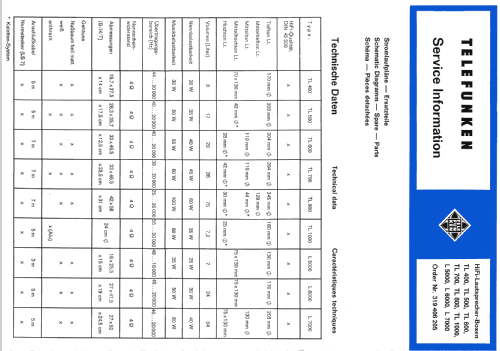

| Mentioned in | Original Telefunken Service Unterlagen |
| Literature/Schematics (1) | Funk-Technik (FT) (7/1974, S. 223 / Werbeanzeige) |
Model page created by Josef Pilz. See "Data change" for further contributors.
