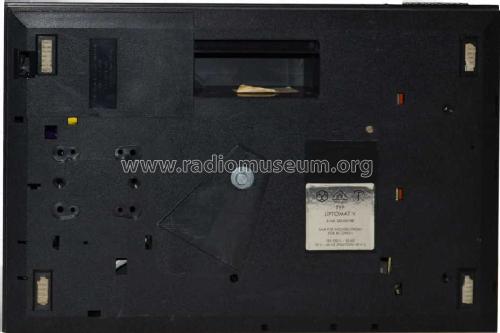

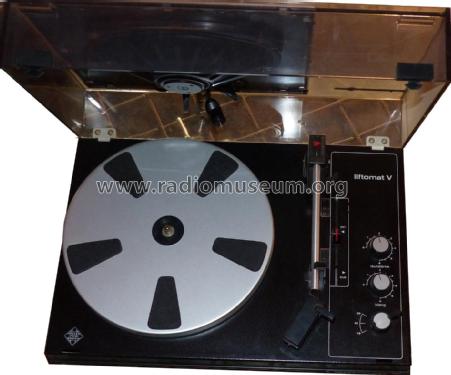

Liftomat V

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1972–1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 113601

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BC239 BC238 AC117 AC175

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Liftomat V - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 385 x 120 x 260 mm / 15.2 x 4.7 x 10.2 inch

• Notes
• Geschwindigkeiten: 33 1/3, 45 und 78 UpM; Stereo-Kristall-System mit Saphir-Nadel.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Source of data
• Handbuch VDRG 1972/1973

• Mentioned in
• Handbuch VDRG 1973/1974 (bis 1975/76)

• Author
• Model page created by Tapio Karilainen. See "Data change" for further contributors.
