• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1968 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 278448

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage

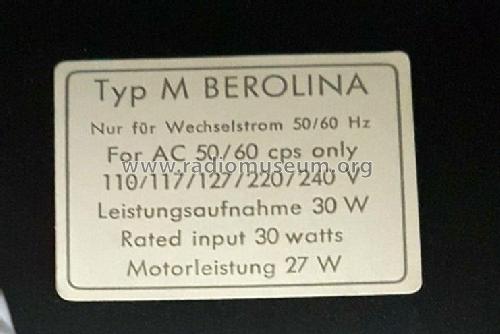

• Alternating Current supply (AC) / 110; 117; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org

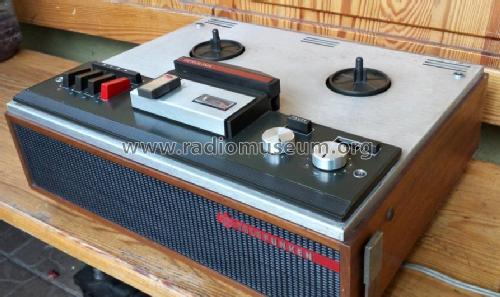

• Model: M Berolina - Telefunken Deutschland TFK,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 395 x 160 x 310 mm / 15.6 x 6.3 x 12.2 inch

• Notes

• Siehe auch Telefunken Berolina Stereo mit Schiebereglern. 2 Bandgeschwindigkeiten, Spulengrösse max. 18 cm. 3-stelliges Bandzählwerk.

• Author
• Model page created by Werner Wussow. See "Data change" for further contributors.
