• Year
  • 1977 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 215889

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220 / 6 × C 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

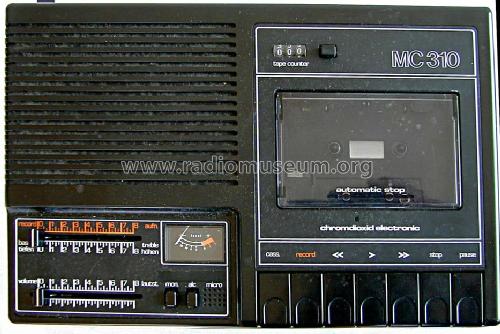

  • Model: Magnetophon MC 310 - Telefunken Deutschland TFK,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 315 x 70 x 205 mm / 12.4 x 2.8 x 8.1 inch
  • Notes
  • Eingebautes Mikrofon; abschaltbare Aussteuerungsautomatik. Bei Netzbetrieb von unten beleuchtete Bandwickel.

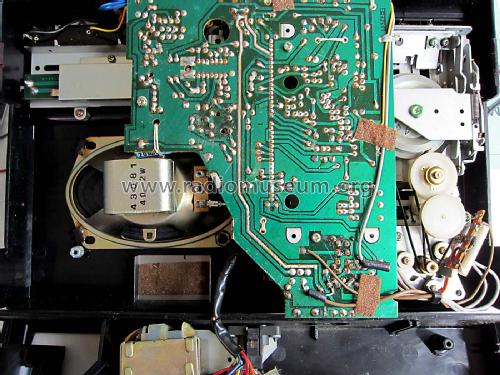

    IC= LA4102K (vermutlich mit Kühlkörper), DS133A 2 Stück.

    Siehe auch MC 310Ska

  • Net weight (2.2 lb = 1 kg)
  • 2.8 kg / 6 lb 2.7 oz (6.167 lb)
  • Literature/Schematics (4)
  • -- Schematic
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
