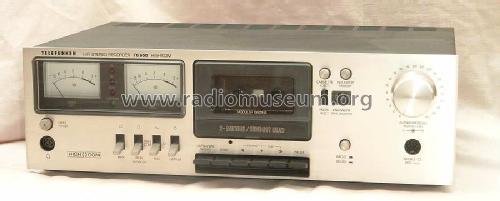

Telefunken: Magnetophon TC-650M [R-Player] ID = 120046 900x362
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetophon TC-650M, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1978 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present. BC550 BC548 BD135 BD675 J411 BZY85 BZX55 1N4148 1N4001 µA78xx MC1458 CD4066 U401B
Main principle Audio-Amplification
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Magnetophon TC-650M - Telefunken Deutschland TFK,
Material Various materials
Shape Book-shelf unit.
Notes "HighCOM"-Rauschunterdrückung
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Egon Penker. See "Data change" for further contributors.
