• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200137

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

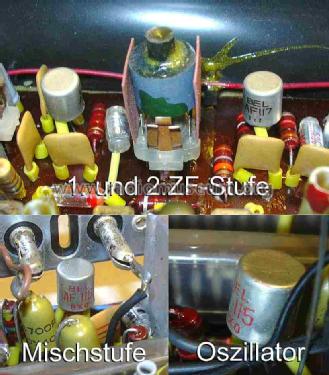

• AF115 AF115 AF117 AF117 CIL467 CIL423 AC187 AC188

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

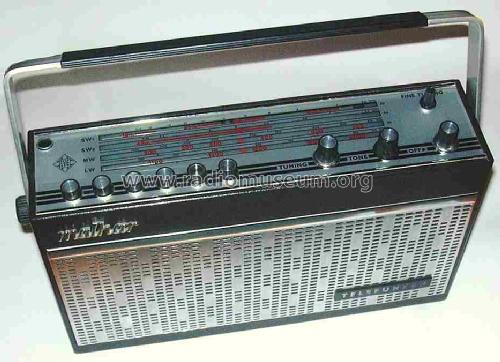

• Model: Malhar 013 [MW, LW, 2xSW] - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 170 x 70 mm / 11.8 x 6.7 x 2.8 inch

• Notes

• Telefunken Malhar;
  SW1: ~7 - 16 MHz,
  SW2: ~5.75 - 6.4 MHz,
  tone control, fine tuning, dial lamp.

  Made by Telefunken India Limited, New Dehli, India.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)
