MC300

MC300; Telefunken (ID = 535926) R-Player

MC300; Telefunken (ID = 535927) R-Player

MC300; Telefunken (ID = 535928) R-Player

MC300; Telefunken (ID = 535929) R-Player

MC300; Telefunken (ID = 535930) R-Player

MC300; Telefunken (ID = 535931) R-Player

MC300; Telefunken (ID = 535932) R-Player

MC300; Telefunken (ID = 535933) R-Player

MC300; Telefunken (ID = 535934) R-Player

MC300; Telefunken (ID = 535935) R-Player
MC300; Telefunken (ID = 2408292) R-Player MC300; Telefunken (ID = 1815622) R-Player
MC300; Telefunken (ID = 1135878) R-Player MC300; Telefunken (ID = 758176) R-Player
MC300; Telefunken (ID = 1135820) R-Player MC300; Telefunken (ID = 1135880) R-Player
MC300; Telefunken (ID = 1135881) R-Player MC300; Telefunken (ID = 415713) R-Player
MC300; Telefunken (ID = 1241170) R-Player MC300; Telefunken (ID = 1815623) R-Player
Use red slider bar for more.
MC300; Telefunken (ID = 2408292) R-Player

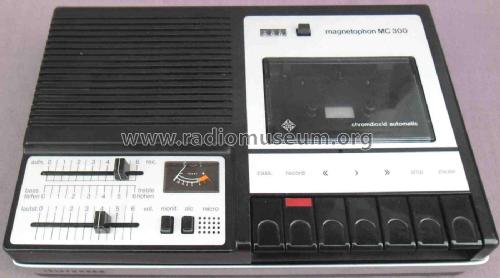

Telefunken: MC300 [R-Player] ID = 2408292 1400x845
Select picture or schematic to display from thumbnails on the right and click for download.
For model MC300, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1975–1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: MC300 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 70 x 210 mm / 10.6 x 2.8 x 8.3 inch
Notes Eingebautes Mikrofon; abschaltbare Aussteuerungsautomatik; Frequenzumfang: mit Fe2O3-Band: 40···10000 Hz, mit CrO2-Band: 40···12000 Hz. Bei Netzbetrieb von unten beleuchtete Bandwickel.
Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)
Source of data Handbuch VDRG 1975/1976
Mentioned in Handbuch VDRG 1976/1977 (und 1977/78)

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
