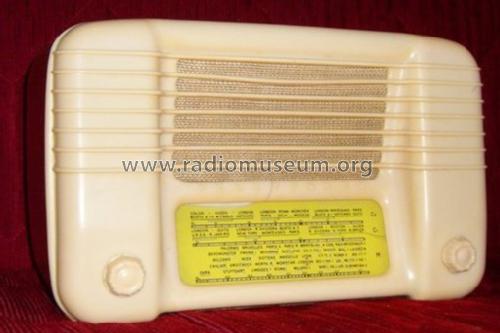

Mignon; Telefunken Italia, (ID = 455328) Radio
Telefunken Italia,: Mignon [Radio] ID = 455328 514x343
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mignon, Telefunken Italia, Milano:
Foto per cortesia del venditore ebay gabri.g - #300222975625

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1949 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: WE20 WE16 WE11 WE15 WE54 or WE55
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mignon - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 300 x 180 x 140 mm / 11.8 x 7.1 x 5.5 inch
Notes

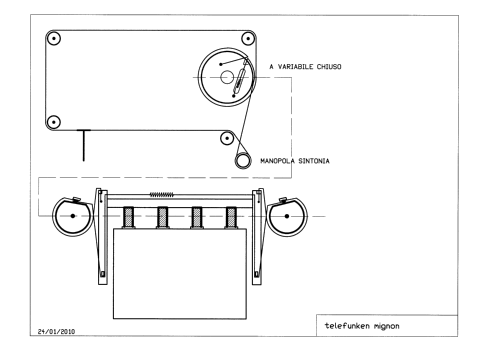

Sintonia ad induttori variabili.
Commutatore Radio/Fono separato dal cambio gamma.

Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 332)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
