Minifon-Special (nicht Miniphon-Spezial) L

Minifon-Special L; Telefunken (ID = 2103289) R-Player Minifon-Special L; Telefunken (ID = 2103291) R-Player
Minifon-Special L; Telefunken (ID = 2103292) R-Player
Use red slider bar for more.
Minifon-Special L; Telefunken (ID = 2103289) R-Player
Telefunken: Minifon-Special L [R-Player] ID = 2103289 741x1023
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minifon-Special (nicht Miniphon-Spezial) L, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

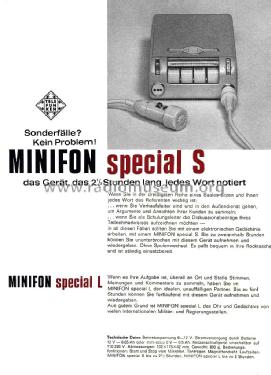

Telefunken Prospekt

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1962–1965 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: OC304 OC304 OC304 OC301
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details Wire Recorder (or -Player)
Power type and voltage Line / Storage batteries (perhaps also batteries) / 110; 220; 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Minifon-Special L - Telefunken Deutschland TFK,
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 40 x 170 mm / 3.9 x 1.6 x 6.7 inch
Notes

Frequenzgang 300-3500 Hz und Drahtgeschwindigkeit 23cm/s. Spielzeit bis 5 Stunden.
Gerät wie Protona Minifon-special L aber Produktion von 1962 - 1965 bei Telefunken.

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Mentioned in -- Original prospect or advert

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
