• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110451

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH41 UAF42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 118; 137 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org
• Model: Musical 9650A [with UAF42] - Telefunken Radiotécnica

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Desde el serial 73601. Anterior, vease variante con UAF41.
  From serial nr. 73601. Before it look variation with UAF41.

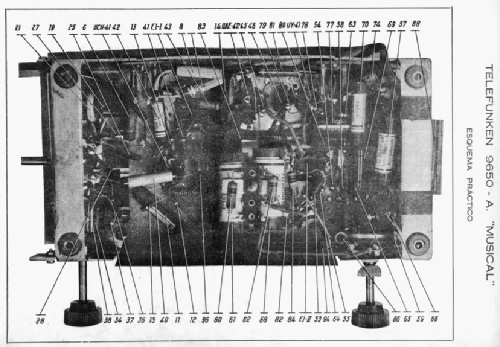

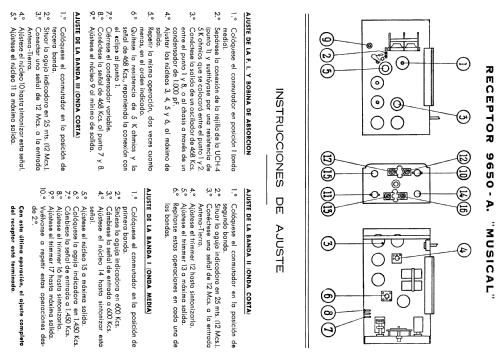

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
