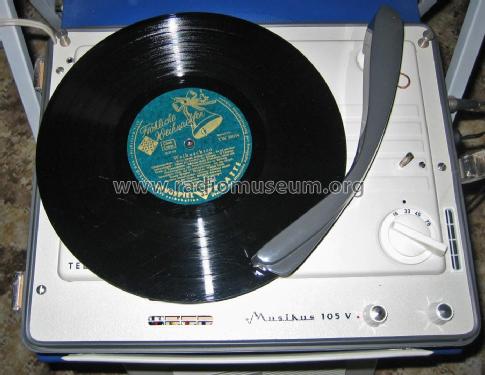

Musikus 105V

Musikus 105V; Telefunken (ID = 548210) R-Player

Musikus 105V; Telefunken (ID = 548212) R-Player

Musikus 105V; Telefunken (ID = 548213) R-Player

Musikus 105V; Telefunken (ID = 548214) R-Player

Musikus 105V; Telefunken (ID = 1469035) R-Player

Musikus 105V; Telefunken (ID = 1469036) R-Player
Musikus 105V; Telefunken (ID = 1381118) R-Player Musikus 105V; Telefunken (ID = 61205) R-Player
Musikus 105V; Telefunken (ID = 2393426) R-Player Musikus 105V; Telefunken (ID = 61207) R-Player
Musikus 105V; Telefunken (ID = 2393425) R-Player Musikus 105V; Telefunken (ID = 61212) R-Player
Musikus 105V; Telefunken (ID = 61210) R-Player Musikus 105V; Telefunken (ID = 691461) R-Player
Musikus 105V; Telefunken (ID = 691459) R-Player Musikus 105V; Telefunken (ID = 691460) R-Player
Use red slider bar for more.
Musikus 105V; Telefunken (ID = 1381118) R-Player
Telefunken: Musikus 105V [R-Player] ID = 1381118 933x916
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musikus 105V, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1964/1965 Category: Sound/Video Recorder and/or Player

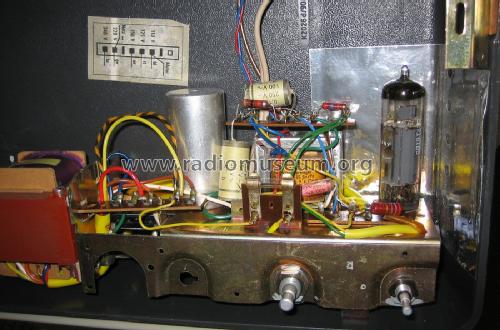

Valves / Tubes 1: ECL86
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Musikus 105V - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 365 x 160 x 285 mm / 14.4 x 6.3 x 11.2 inch

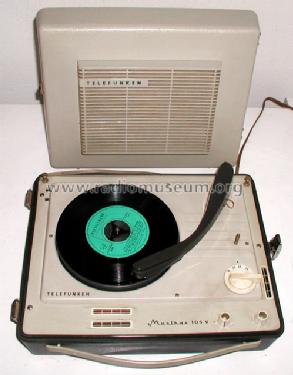

Notes Plattenspieler mit NF-Verstärker und flachem Spezial-Lautsprecher (mit innenliegendem Magnet)im Deckel.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
External source of data Service-Manual von Telefunken
Mentioned in Handbuch VDRG 1964/1965

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
