Opus HiFi 301

ID = 28785

Opus HiFi 301; Telefunken (ID = 125731) Radio

Opus HiFi 301; Telefunken (ID = 125733) Radio

Opus HiFi 301; Telefunken (ID = 1401276) Radio

Opus HiFi 301; Telefunken (ID = 1401277) Radio

Opus HiFi 301; Telefunken (ID = 1401279) Radio

Opus HiFi 301; Telefunken (ID = 204650) Radio

Opus HiFi 301; Telefunken (ID = 204655) Radio

Opus HiFi 301; Telefunken (ID = 204651) Radio

Opus HiFi 301; Telefunken (ID = 204652) Radio

Next schematics

{gbW: "1269", gbH: "405", mW: "500", mH: "159.0", kb: "255 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:[br]Telefunken Opus 301 in sehr gutem Zustand Frontansicht", title: "Telefunken Opus HiFi 301 from Michael Kern (1)", ite: "1"} {gbW: "933", gbH: "411", mW: "500", mH: "220.0", kb: "50 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH", title: "Telefunken Opus HiFi 301 from Werner Riethmüller (1)", ite: "1"} {gbW: "933", gbH: "481", mW: "500", mH: "257.0", kb: "115 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:[br]301_Innen", title: "Telefunken Opus HiFi 301 from Klemens Rhode (1)", ite: "1"} {gbW: "713", gbH: "562", mW: "475.0", mH: "375", kb: "72 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH", title: "Telefunken Opus HiFi 301 from Heiko zur Mühlen (1)", ite: "1"} {gbW: "806", gbH: "559", mW: "500", mH: "346.0", kb: "111 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH", title: "Telefunken Opus HiFi 301 from Heiko zur Mühlen (1)", ite: "1"} {gbW: "699", gbH: "605", mW: "433.0", mH: "375", kb: "145 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:[br]Aus Großhandelskatalog 1971/72", title: "Telefunken Opus HiFi 301 uploaded by Heiko zur Mühlen (2)", ite: "2"} {gbW: "815", gbH: "339", mW: "500", mH: "207.0", kb: "57 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:[br]Gerät eines Sammlerkollegen", title: "Telefunken Opus HiFi 301 uploaded by Heiko zur Mühlen (2)", ite: "2"} {gbW: "933", gbH: "295", mW: "500", mH: "158.0", kb: "18 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:[br]Typenschild", title: "Telefunken Opus HiFi 301 from Klemens Rhode (1)", ite: "1"} {gbW: "933", gbH: "189", mW: "500", mH: "101.0", kb: "32 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:[br]opus hifi 301", title: "Telefunken Opus HiFi 301 from Klemens Rhode (1)", ite: "1"} {gbW: "933", gbH: "171", mW: "500", mH: "91.0", kb: "27 KB", notes: "For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:[br]301_Rueckw.", title: "Telefunken Opus HiFi 301 from Klemens Rhode (1)", ite: "1"}

Opus HiFi 301; Telefunken (ID = 66159) Radio

Opus HiFi 301; Telefunken (ID = 66237) Radio

Opus HiFi 301; Telefunken (ID = 66238) Radio

Next pictures

Use red slider bar for more.

Opus HiFi 301; Telefunken (ID = 2050585) Radio

Telefunken: Opus HiFi 301 [Radio] ID = 2050585 1269x405

Select picture or schematic to display from thumbnails on the right and click for download.

For model Opus HiFi 301, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

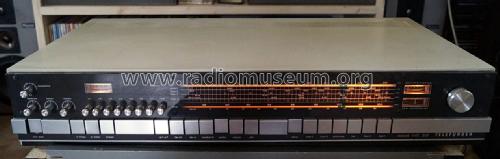

Telefunken Opus 301 in sehr gutem Zustand Frontansicht

Country:

Germany

Manufacturer / Brand:

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Year: 1971–1973

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

70:

Main principle	Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits	10 AM circuit(s) 20 FM circuit(s)
Wave bands	Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage	Alternating Current supply (AC) / 110-127; 220-240 Volt
Loudspeaker	- This model requires external speaker(s).
Power out
from Radiomuseum.org	Model: Opus HiFi 301 - Telefunken Deutschland TFK,
Material	Wooden case
Shape	Book-shelf unit.
Dimensions (WHD)	650 x 120 x 338 mm / 25.6 x 4.7 x 13.3 inch
Notes	HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 35 W (Sinus).
Net weight (2.2 lb = 1 kg)	13.9 kg / 30 lb 9.9 oz (30.617 lb)
Price in first year of sale	1'298.00 DM
External source of data	Erb
Source of data	Handbuch VDRG 1971/1972
