Orchestra 2654

Orchestra 2654; Telefunken (ID = 796408) Radio

Orchestra 2654; Telefunken (ID = 796409) Radio

Orchestra 2654; Telefunken (ID = 796410) Radio

Orchestra 2654; Telefunken (ID = 796411) Radio

Orchestra 2654; Telefunken (ID = 796413) Radio

Orchestra 2654; Telefunken (ID = 796415) Radio

Orchestra 2654; Telefunken (ID = 796412) Radio

Orchestra 2654; Telefunken (ID = 796407) Radio

Orchestra 2654; Telefunken (ID = 1903317) Radio

Orchestra 2654; Telefunken (ID = 1903320) Radio
Orchestra 2654; Telefunken (ID = 751854) Radio Orchestra 2654; Telefunken (ID = 799759) Radio
Orchestra 2654; Telefunken (ID = 799760) Radio Orchestra 2654; Telefunken (ID = 799616) Radio
Orchestra 2654; Telefunken (ID = 448860) Radio Orchestra 2654; Telefunken (ID = 799615) Radio
Use red slider bar for more.
Orchestra 2654; Telefunken (ID = 751854) Radio

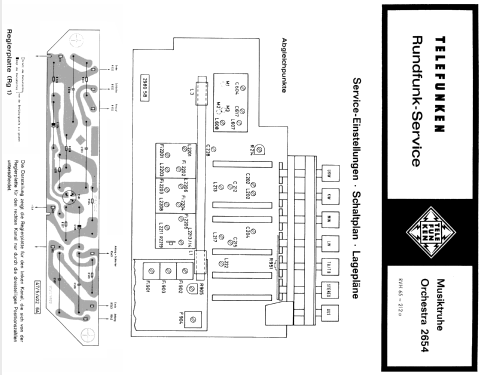

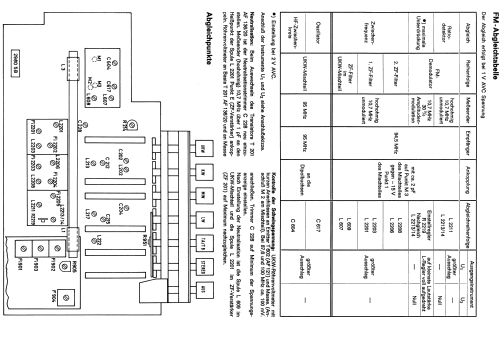

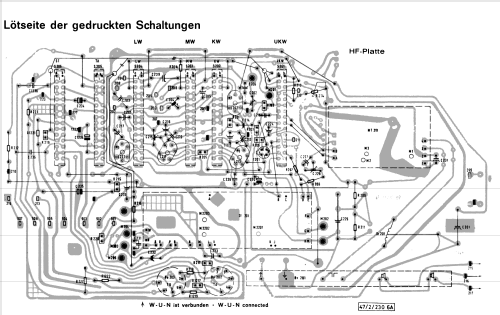

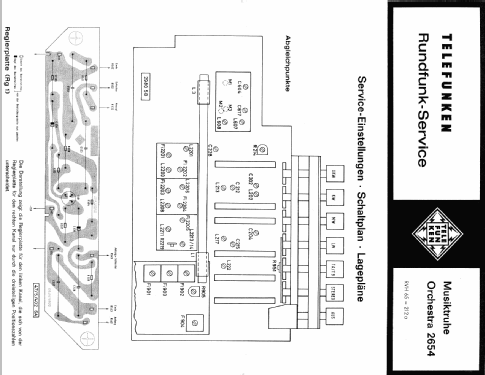

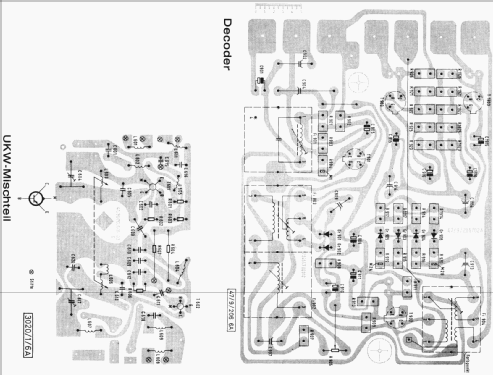

Telefunken: Orchestra 2654 [Radio] ID = 751854 850x532
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orchestra 2654, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Q: Telefunken Service

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1965–1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 25: AF106 AF121 AF121 AF136 AF137 AF137 AF137 AC122 AC117 AC175 AC175 AD155 AD155 AD155 AD155 AA133 AA112
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Orchestra 2654 - Telefunken Deutschland TFK,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1350 x 715 x 375 mm / 53.1 x 28.1 x 14.8 inch
Notes Transistoren: AF106, 2× AF121, AF136, 3× AF137, 8× AC122, 4× AC117, 2× AC175, 4× AD155; Dioden: 6× AA133, 4× AA112.
Rundfunk-Chassis = Operette 2650, Vollstereo, NF-Verstärker mit 2 Gegentakt-Endstufen je 6 W.
Phono-Chassis = Telefunken TW506.
Net weight (2.2 lb = 1 kg) 45 kg / 99 lb 1.9 oz (99.119 lb)
External source of data erb
Source of data Handbuch VDRG 1965/1966
Mentioned in Handbuch VDRG 1966/1967
