Orchestra HiFi 101

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28367

• Picture

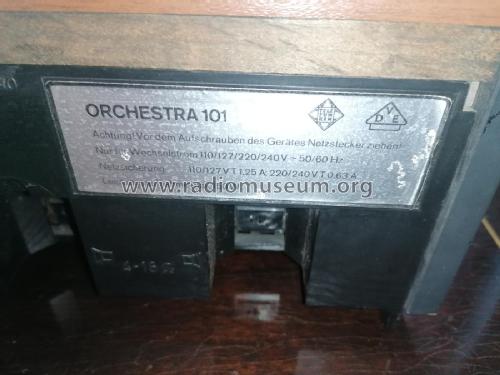

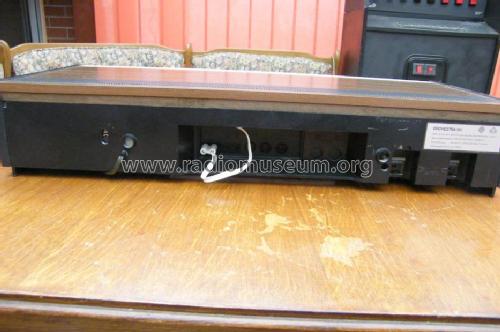

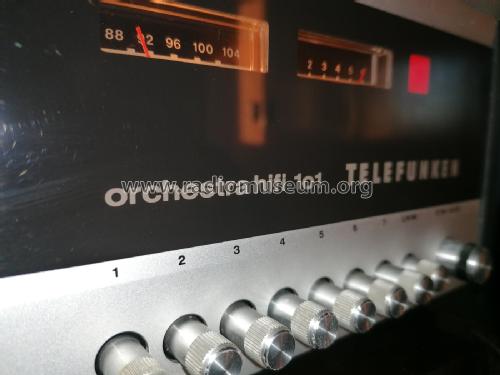

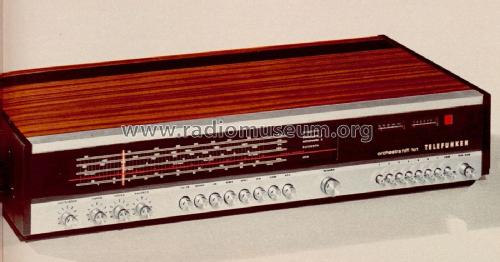

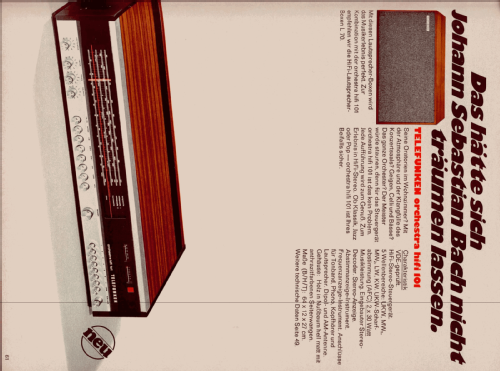

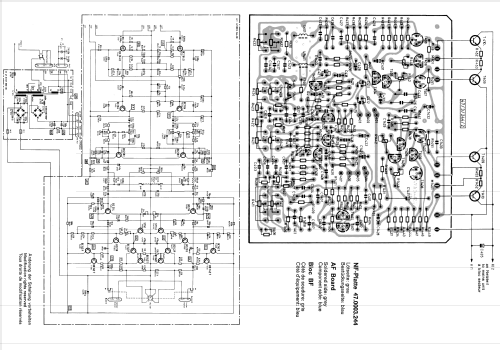

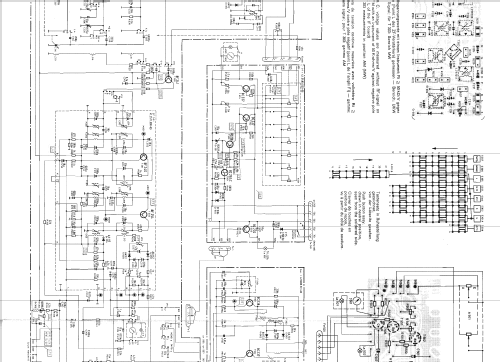

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 43

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 44 W (60 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Orchestra HiFi 101 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 640 x 120 x 270 mm / 25.2 x 4.7 x 10.6 inch

• Notes
• HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 22 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972

• Mentioned in
• Funk-Technik (FT) (13/1971, S. 477 - 481 / Beschreibung, Teilschema)

• Other Models

• Here you find 3545 models, 3125 with images and 2095 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
