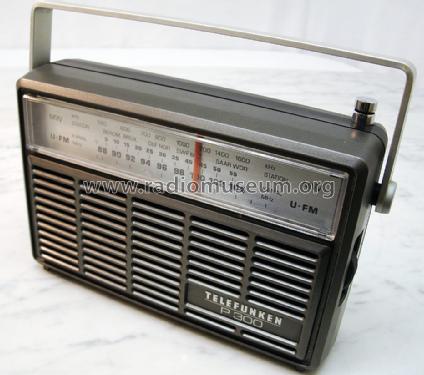

P300; Telefunken (ID = 1300637) Radio
Telefunken: P300 [Radio] ID = 1300637 933x824
Select picture or schematic to display from thumbnails on the right and click for download.
For model P300, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1974 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: 2SA838 2SA838 TDA1220 TBA820M 1N4148 1N753
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / AA: 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: P300 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 195 x 130 x 55 mm / 7.7 x 5.1 x 2.2 inch
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3425 models, 2993 with images and 1974 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
