PALcolor 624

PALcolor 624; Telefunken (ID = 2087889) Television
PALcolor 624; Telefunken (ID = 1412115) Television PALcolor 624; Telefunken (ID = 1412116) Television
PALcolor 624; Telefunken (ID = 1412117) Television PALcolor 624; Telefunken (ID = 1412118) Television
PALcolor 624; Telefunken (ID = 2087888) Television PALcolor 624; Telefunken (ID = 2087892) Television
PALcolor 624; Telefunken (ID = 2087894) Television PALcolor 624; Telefunken (ID = 2087897) Television
Use red slider bar for more.
PALcolor 624; Telefunken (ID = 1412115) Television
Telefunken: PALcolor 624 [Television] ID = 1412115 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model PALcolor 624, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1975 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: PALcolor 624 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 630 x 430 x 410 mm / 24.8 x 16.9 x 16.1 inch

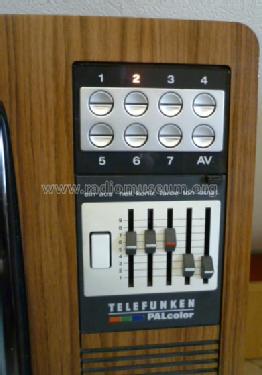

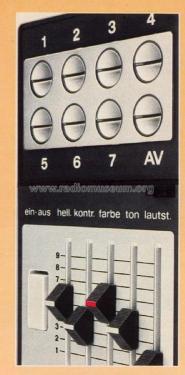

Notes Telefunken PALcolor 624, 8-fach Sensor, Ausführung in Nußbaum-Dekor, perlweiß oder anthrazit. Verkauf über die Weltfunk anläßlich der Funkausstellung 1975.

Model page created by Eckhard Wegner. See "Data change" for further contributors.
