PALcolor 629T FS69 4709

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 262921

• Picture
• Schematics

Previous Next

Previous Next

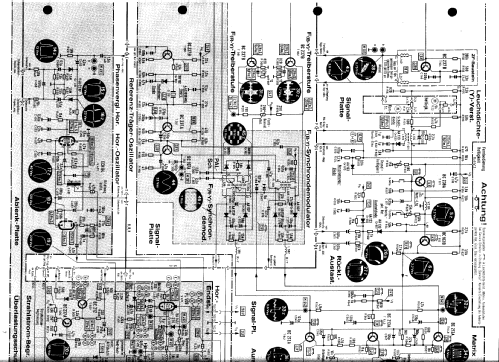

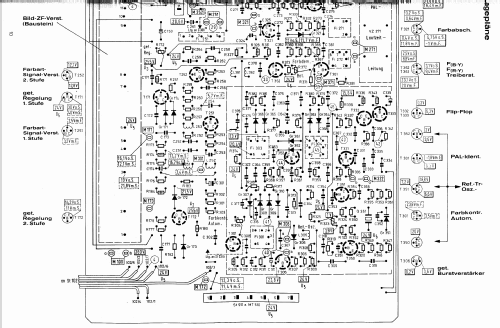

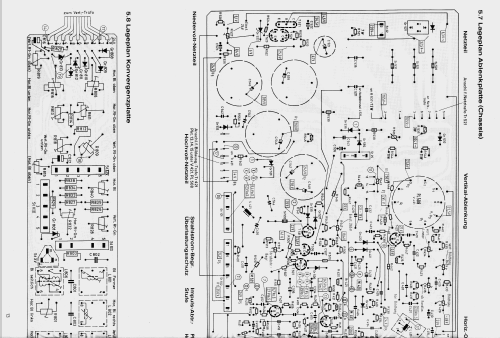

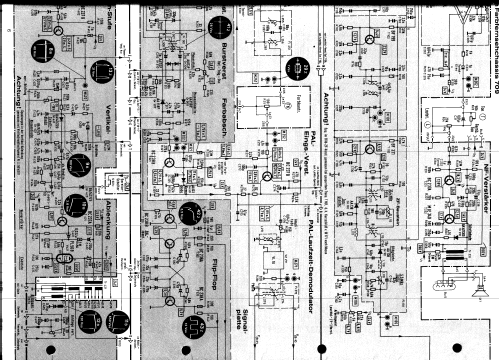

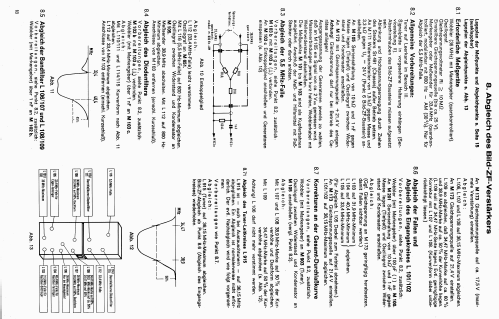

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• PL508 ECH84 PL509 PY500A A56-120X

• Number of Transistors
• 48

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 195-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: PALcolor 629T FS69 4709 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 680 x 460 x 470 mm / 26.8 x 18.1 x 18.5 inch

• Notes

• Chassis FS69-4709 auch in:

  PALcolor 639 T
  PALcolor 719 T
  PALcolor 739 T
  PALcolor 719 St
  PALcolor 719 SM.

• Net weight (2.2 lb = 1 kg)
• 36 kg / 79 lb 4.7 oz (79.295 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Klaus-Dieter Dietzel. See "Data change" for further contributors.

• Other Models

• Here you find 3546 models, 3126 with images and 2095 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
