• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1973

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 245602

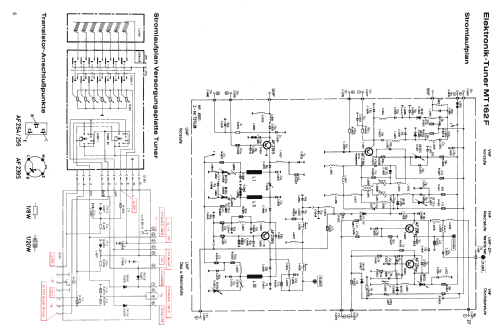

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH84 PL519 PY500A PL508 A66-140X ZM1000

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: PALcolor 772 computer Ch= 710B - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 760 x 520 x 460 mm / 29.9 x 20.5 x 18.1 inch

• Notes

• Leistungsaufnahme ca. 290 Watt, Antennenanschluß 240 Ohm symmetrisch ICE-Buchsen nach VDE-Norm, Lautsprecher oval 10 × 18 cm, 92 Dioden/Gleichrichter 1 integrierter Schaltkreis.
  VHF-Bereich Band 1: Kanal 2-4 (47- 68 MHz), Band 3: Kanal 5-12 (174-230 MHz, UHF Band IV/V: Kanal 21-60 (470-790 MHz).
  Ultraschall Fernbedienung Supersonic 100.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.

• Other Models

• Here you find 3545 models, 3125 with images and 2094 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
