PALcolor DC885 supersonic Ch= 712 Erz.Nr. 314950509

PALcolor DC885 supersonic Ch= 712 Erz.Nr. 314950509; Telefunken (ID = 2001012) Television

PALcolor DC885 supersonic Ch= 712 Erz.Nr. 314950509; Telefunken (ID = 2001014) Television
PALcolor DC885 supersonic Ch= 712 Erz.Nr. 314950509; Telefunken (ID = 2552039) Television
Use red slider bar for more.
PALcolor DC885 supersonic Ch= 712 Erz.Nr. 314950509; Telefunken (ID = 2552039) Television

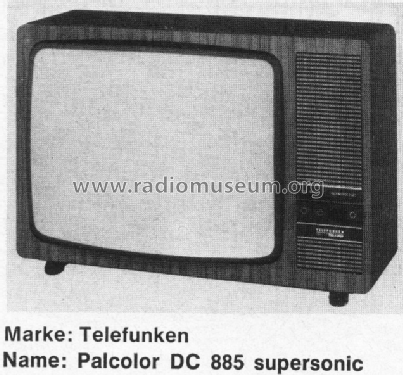

Telefunken: PALcolor DC885 supersonic Ch= 712 Erz.Nr. 314950509 [Television] ID = 2552039 637x592
Select picture or schematic to display from thumbnails on the right and click for download.
For model PALcolor DC885 supersonic Ch= 712 Erz.Nr. 314950509, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Funk-Technik 17/1975, S. 549

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1975 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: PALcolor DC885 supersonic Ch= 712 Erz.Nr. 314950509 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Die ganze Servicedokumentation mit allen Ausstattungsdetails befindet sich beim
Modell Farbfernseh-Chassis 712.

Mentioned in Funk-Technik (FT) (17/1975, S. 549 / Neuvorstellung)
Literature/Schematics (1) -- Original-techn. papers.
