PALcolor MR25 Ch= 617

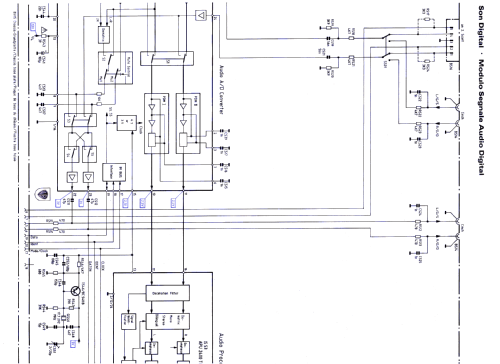

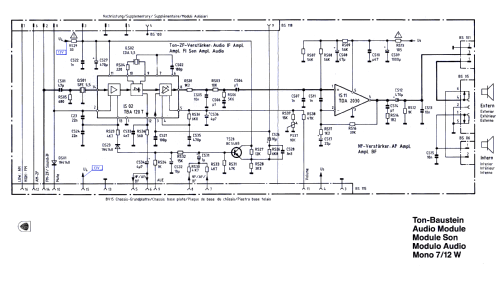

PALcolor MR25 Ch= 617; Telefunken (ID = 1167832) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167833) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167835) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167836) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167837) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167838) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167839) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167840) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167841) Television

PALcolor MR25 Ch= 617; Telefunken (ID = 1167842) Television
PALcolor MR25 Ch= 617; Telefunken (ID = 1167984) Television
Use red slider bar for more.
PALcolor MR25 Ch= 617; Telefunken (ID = 1167984) Television
Telefunken: PALcolor MR25 Ch= 617 [Television] ID = 1167984 933x667
Select picture or schematic to display from thumbnails on the right and click for download.
For model PALcolor MR25 Ch= 617, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Bild aus Funkberaterkatalog 1988.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1987/1988 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: PALcolor MR25 Ch= 617 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 670 x 490 x 460 mm / 26.4 x 19.3 x 18.1 inch
Notes 25"/110° Bildröhre.
PAL- und Secam G Norm
Fernsekanäle: 02 - 04, S 01, S 02 - 10, 05 - 12, S 11 - S 20, 21 - 69.
Teletextdecoder nachrüstbar.
Tonendstufe 12 Watt Musik.
Fernbedienung FB 1190.
Price in first year of sale 11'990.00 ATS
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
