• Year
  • 1987/1988
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 212765

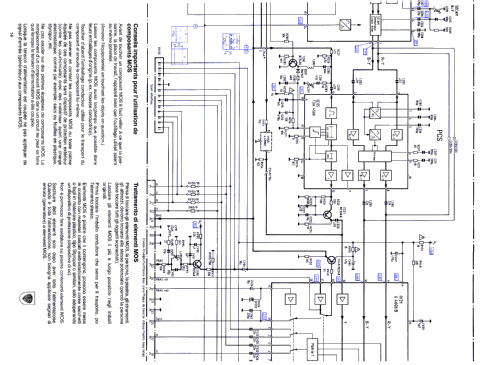

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: PALcolor S25 Ch= 617 - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 730 x 490 x 460 mm / 28.7 x 19.3 x 18.1 inch
  • Notes
  • 25"/110° Bildröhre.
    PAL- und Secam G Norm
    Fernsekanäle: 02 - 04, S 01, S 02 - 10, 05 - 12, S 11 - S 20, 21 - 69.
    Teletextdecoder nachrüstbar.
    Tonendstufe 2 × 25 Watt Musik.
    Fernbedienung FB 1290.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
