PALcolor SP21 Ch= 617
Use red slider bar for more.
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1987/1988 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 1: | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | Semiconductors present. |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: PALcolor SP21 Ch= 617 - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 520 x 470 x 480 mm / 20.5 x 18.5 x 18.9 inch |
| Notes | 21"/90° Bildröhre. PAL- und Secam G Norm Fernsekanäle: 02 - 04, S 01, S 02 - 10, 05 - 12, S 11 - S 20, 21 - 69. Teletextdecoder nachrüstbar. Tonendstufe 2 × 12 Watt Musik. Fernbedienung FB 1290. |

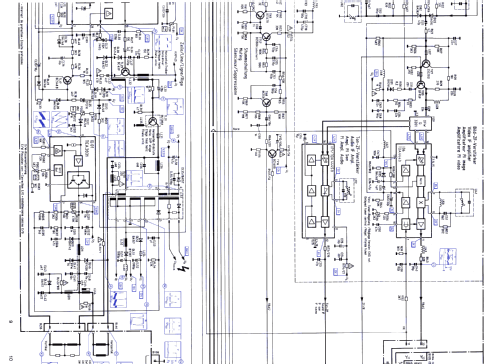

| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Wolfgang Bauer. See "Data change" for further contributors.
