• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1975/1976

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 198396

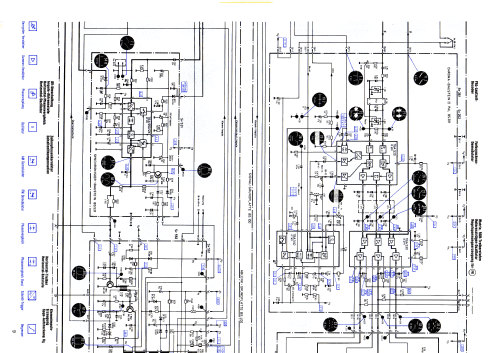

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A66-500X

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: PALcolor 895TM supersonic Ch= 712 Erz.Nr. 314950485 - Telefunken Deutschland TFK,

• Notes

• Telefunken PALcolor 895TM supersonic mit "Studioton".

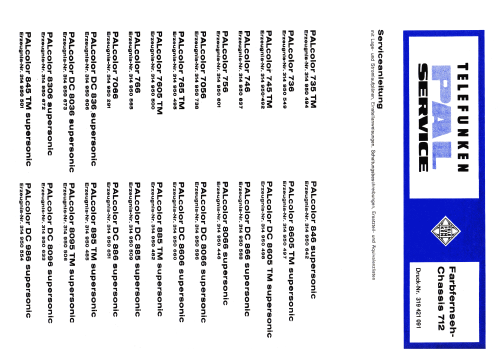

  Die ganze Servicedokumentation mit allen Ausstattungsdetails befindet sich beim
  Modell Farbfernseh-Chassis 712.

• Mentioned in
• (A) Radio Elektronik Schau; Heft 12, 1975 Kurzvorstellung

• Literature/Schematics (1)
• -- Original-techn. papers.
