Partner 400

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94552

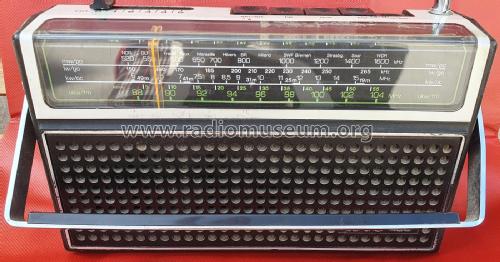

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

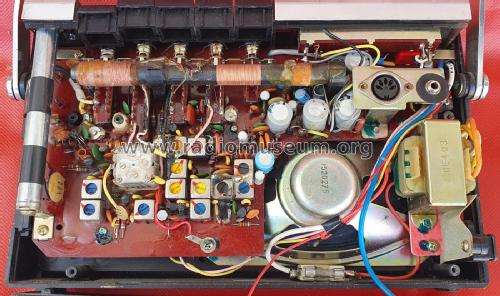

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

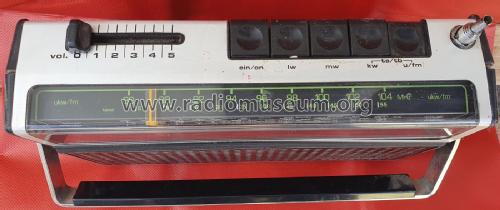

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

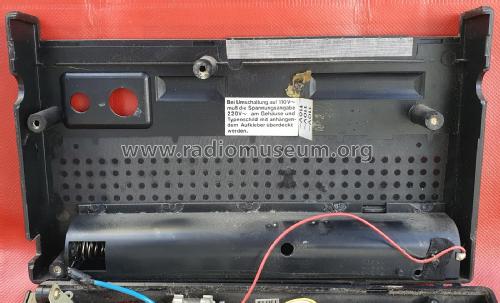

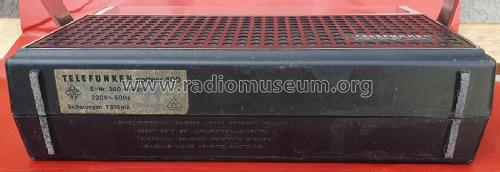

• Power type and voltage
• Line / Batteries (any type) / 220; (4 × 1,5) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Partner 400 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 255 x 150 x 60 mm / 10 x 5.9 x 2.4 inch

• Notes
• Ausgangsleistung bei Netzbetrieb: 1,5 W.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• Handbuch VDRG 1976/1977

• Author
• Model page created by Ervé Leclercq. See "Data change" for further contributors.
