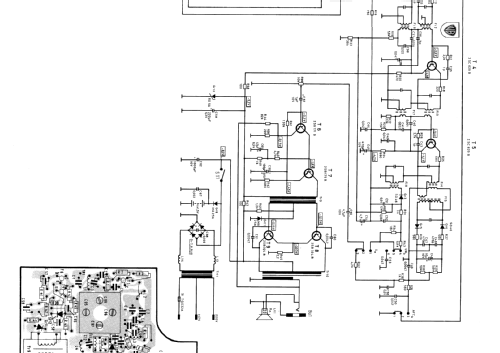

Select picture or schematic to display from thumbnails on the right and click for download.

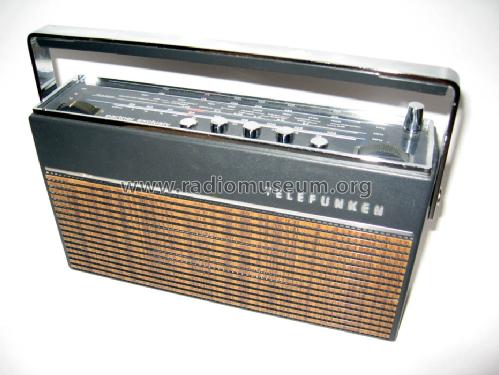

For model partner exclusiv 201, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1971/1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SC1047 2SC1047 2SC829 2SC829 2SC829 2SB171 2SB175 2SB324 2SB324
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 127; 220 / 4×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: partner exclusiv 201 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 206 x 115 x 62 mm / 8.1 x 4.5 x 2.4 inch
Notes Automatische UKW-Scharfabstimmung; automatische Umschaltung von Batterie- auf Netzbetrieb.
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
External source of data Erb
Source of data Handbuch VDRG 1971/1972
