• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1973 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 329811

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• 2SC1359 2SC1359 2SC1047 2SC829 2SC829 2SC829 2SC829 2SC828 2SC828 2SC828 2SC1383 2SA683 2SB324 OA90 WZ065 KB265 1S2139 1S1555 B20C275

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 0.5 W (2 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

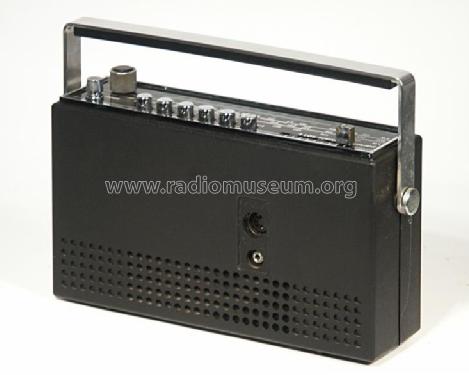

• Model: Partner Exclusiv 401 L - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 232 x 133 x 61 mm / 9.1 x 5.2 x 2.4 inch

• Notes

• In the description it says 12 transistors but in the diagram and in the spare parts list there are 13.

  See also Telefunken Partner Exclusiv 401 with 6 transistors and one IC.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Literature/Schematics (1)
• -- Original-techn. papers. (Tfk Service Information Druck Nr. 319 406 185)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
