Portable 2 Band FM/AM Receiver PR 200

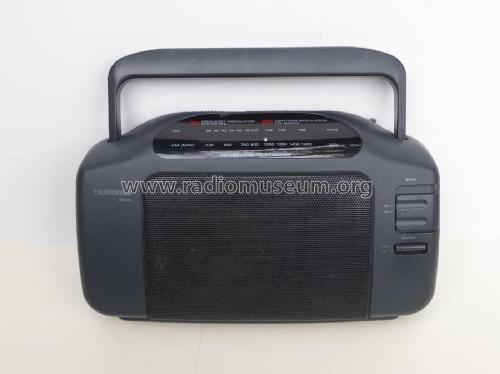

Portable 2 Band FM/AM Receiver PR 200; Telefunken (ID = 1953731) Radio Portable 2 Band FM/AM Receiver PR 200; Telefunken (ID = 1953732) Radio
Portable 2 Band FM/AM Receiver PR 200; Telefunken (ID = 1953733) Radio Portable 2 Band FM/AM Receiver PR 200; Telefunken (ID = 1953739) Radio
Use red slider bar for more.
Portable 2 Band FM/AM Receiver PR 200; Telefunken (ID = 1953731) Radio
Telefunken: Portable 2 Band FM/AM Receiver PR 200 [Radio] ID = 1953731 1200x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable 2 Band FM/AM Receiver PR 200, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1999 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 230 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out 2 W (max.)
from Radiomuseum.org Model: Portable 2 Band FM/AM Receiver PR 200 - Telefunken Deutschland TFK,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 160 x 70 mm / 10.6 x 6.3 x 2.8 inch

Model page created by Matthias Buhl. See "Data change" for further contributors.
