PR10

PR10; Telefunken (ID = 2576481) Radio PR10; Telefunken (ID = 2576482) Radio
PR10; Telefunken (ID = 2576483) Radio PR10; Telefunken (ID = 2576484) Radio
PR10; Telefunken (ID = 660218) Radio PR10; Telefunken (ID = 660219) Radio
PR10; Telefunken (ID = 660221) Radio PR10; Telefunken (ID = 2511830) Radio
Use red slider bar for more.

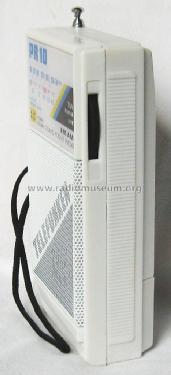

PR10; Telefunken (ID = 2576481) Radio
Telefunken: PR10 [Radio] ID = 2576481 576x1024
Select picture or schematic to display from thumbnails on the right and click for download.
For model PR10, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: CS1502 2SC1417 TDA1083
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: PR10 - Telefunken Deutschland TFK,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 75 x 134 x 36 mm / 3 x 5.3 x 1.4 inch
Net weight (2.2 lb = 1 kg) 0.230 kg / 0 lb 8.1 oz (0.507 lb)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
