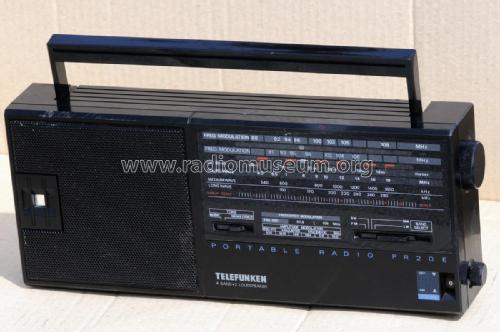

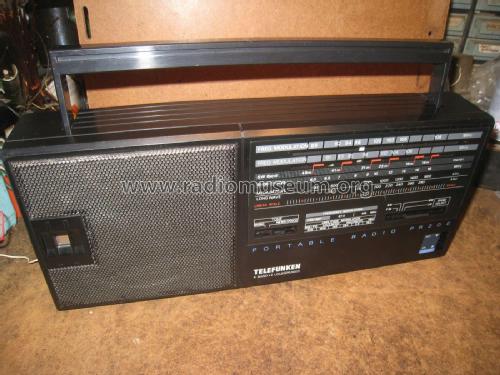

Portable Radio PR20E

Portable Radio PR20E; Telefunken (ID = 231971) Radio Portable Radio PR20E; Telefunken (ID = 874244) Radio
Portable Radio PR20E; Telefunken (ID = 821530) Radio Portable Radio PR20E; Telefunken (ID = 874245) Radio
Portable Radio PR20E; Telefunken (ID = 874246) Radio Portable Radio PR20E; Telefunken (ID = 874247) Radio
Portable Radio PR20E; Telefunken (ID = 1326291) Radio Portable Radio PR20E; Telefunken (ID = 1326292) Radio

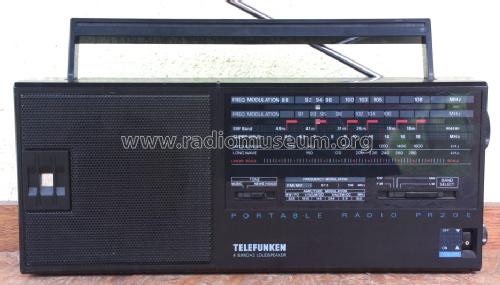

Portable Radio PR20E; Telefunken (ID = 1326293) Radio Portable Radio PR20E; Telefunken (ID = 1720207) Radio
Use red slider bar for more.
Portable Radio PR20E; Telefunken (ID = 231971) Radio
Telefunken: Portable Radio PR20E [Radio] ID = 231971 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Radio PR20E, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Vendu

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1987 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. CS9013 1502C 1502C TA7640 TBA820
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240 / 4x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Portable Radio PR20E - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 132 x 65 mm / 12.6 x 5.2 x 2.6 inch
Notes Frequency range:
FM 87.5 - 108 MHz
MW 525 - 1610 kHz
LW 148 - 284 kHz
SW 5.9 - 18.0 MHz.
Net weight (2.2 lb = 1 kg) 0.970 kg / 2 lb 2.2 oz (2.137 lb)
Source of data -- Original-techn. papers.

Model page created by Ervé Leclercq. See "Data change" for further contributors.
