• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138817

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• ED1502 TDA1220 LA3361 ED1402 ED1702 ED1802 1N4148

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / AA: 3 x 1.5 / 6 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

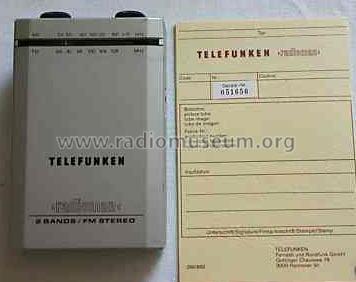

• Model: Radioman - Telefunken Deutschland TFK,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 80 x 125 x 30 mm / 3.1 x 4.9 x 1.2 inch

• Notes

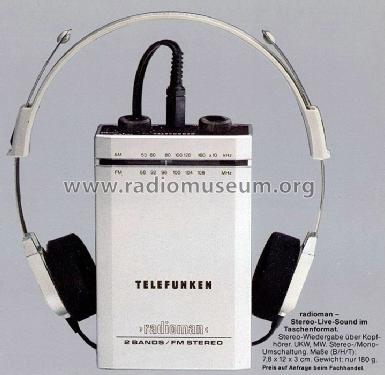

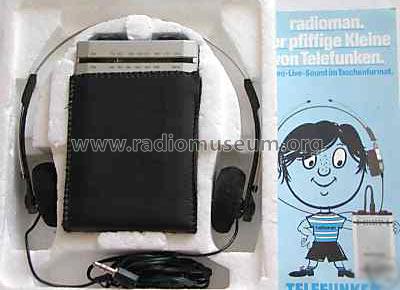

• Telefunken Radioman. Taschenempfänger im "Walkman" Format. FM-Stereo. Lieferung einschliesslich Stereo-Kopfhörer.

  Externe Speisung möglich mit Netzteil 6 V 200 mA (Hohlstecker Mittelpin Minus).

  FTZ-Nr. 11/510

  Jeder Halbleitertyp ist einmal gelistet

• Net weight (2.2 lb = 1 kg)
• 0.180 kg / 0 lb 6.3 oz (0.396 lb)

• Price in first year of sale
• 112.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
