2-Motors Metal Cassette Deck RC200; Telefunken (ID = 2262058) R-Player
Telefunken: 2-Motors Metal Cassette Deck RC200 [R-Player] ID = 2262058 1400x712

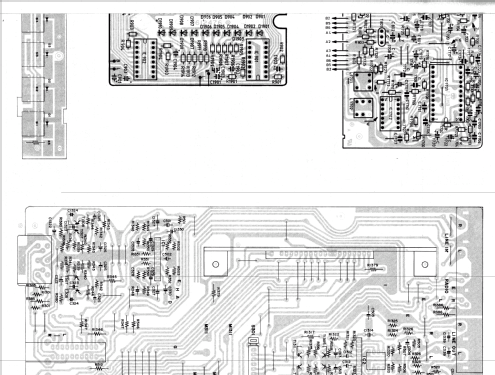

Select picture or schematic to display from thumbnails on the right and click for download.
For model 2-Motors Metal Cassette Deck RC200, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1982–1984 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 2-Motors Metal Cassette Deck RC200 - Telefunken Deutschland TFK,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 111 x 272 mm / 17.1 x 4.4 x 10.7 inch
Notes

2-Motoren-Laufwerk, Tipptastensteuerung, Fe-, Cr-, FeCr- und Metal-Band, Sendust-Tonkopf, HIGH COM und DOLBY B-Kompatibel-System, Memory-Zählwerk.

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.75 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, FeCr, CrO2, Metal
Noise Reduction: High Com
Frequency Response: 30Hz to 20kHz  (Metal tape)
Signal to Noise Ratio: 77dB  (High Com)
Wow and Flutter: 0.1%
Total Harmonic Distortion: 2%
Input: 180mV (line), 0.5mV (mic)
Output: 1.1V (line)

Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)
Price in first year of sale 499.00 DM
Collectors' prices
Mentioned in -- Original prospect or advert

Model page created by Günther Stabe. See "Data change" for further contributors.
