Don Q RCX 100M

Don Q RCX 100M; Telefunken (ID = 837788) Radio Don Q RCX 100M; Telefunken (ID = 837789) Radio
Don Q RCX 100M; Telefunken (ID = 837790) Radio Don Q RCX 100M; Telefunken (ID = 837791) Radio

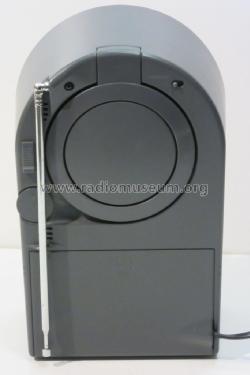

Don Q RCX 100M; Telefunken (ID = 2014911) Radio Don Q RCX 100M; Telefunken (ID = 2014912) Radio
Don Q RCX 100M; Telefunken (ID = 2014913) Radio Don Q RCX 100M; Telefunken (ID = 2014914) Radio
Don Q RCX 100M; Telefunken (ID = 2014915) Radio Don Q RCX 100M; Telefunken (ID = 2014916) Radio
Use red slider bar for more.
Don Q RCX 100M; Telefunken (ID = 837788) Radio
Telefunken: Don Q RCX 100M [Radio] ID = 837788 704x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Don Q RCX 100M, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1988 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Don Q RCX 100M - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 160 x 250 x 112 mm / 6.3 x 9.8 x 4.4 inch
Notes

Telefunken "don Q" RCX-100 M, 3-Band Radio with built-in cassette recorder. Dynamic Bass Boost, Auto-Stop, One Touch Recording.
Designed by Starck, foldable carrying handle moving into the back cabinet.

Net weight (2.2 lb = 1 kg) 1.650 kg / 3 lb 10.1 oz (3.634 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.
