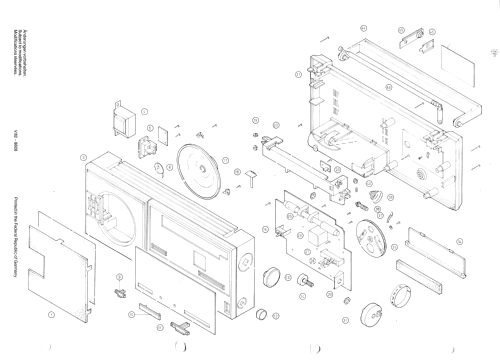

RP500; Telefunken (ID = 192649) Radio

RP500; Telefunken (ID = 192650) Radio

RP500; Telefunken (ID = 192651) Radio
RP500; Telefunken (ID = 492506) Radio RP500; Telefunken (ID = 510985) Radio
RP500; Telefunken (ID = 510981) Radio RP500; Telefunken (ID = 510979) Radio
RP500; Telefunken (ID = 510983) Radio RP500; Telefunken (ID = 1444152) Radio
RP500; Telefunken (ID = 1444153) Radio RP500; Telefunken (ID = 1638507) Radio
RP500; Telefunken (ID = 1711414) Radio RP500; Telefunken (ID = 2237014) Radio
Use red slider bar for more.
RP500; Telefunken (ID = 492506) Radio
Telefunken: RP500 [Radio] ID = 492506 933x432
Select picture or schematic to display from thumbnails on the right and click for download.
For model RP500, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1987 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 3:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240; (4 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: RP500 - Telefunken Deutschland TFK,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 130 x 55 mm / 12.2 x 5.1 x 2.2 inch
Notes

2 IC's

Telefunken RP500 5-Band Kofferradio. KW mit 16, 19, 25, 31, 41, 49 Meter Band. Umschalter Musik/Sprache , Kopfhöreranschluss auf der Rückseite

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Price in first year of sale 79.00 DM
Source of data -- Original-techn. papers.

Model page created by Daniel Doll. See "Data change" for further contributors.
