• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1982/1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92758

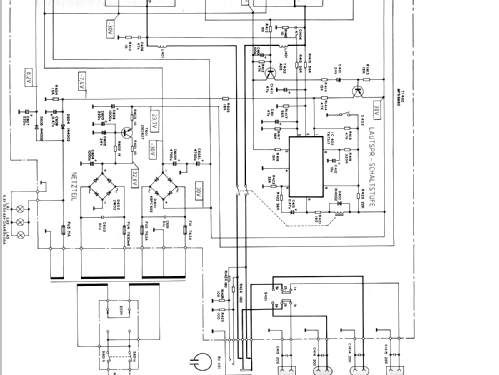

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 4 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

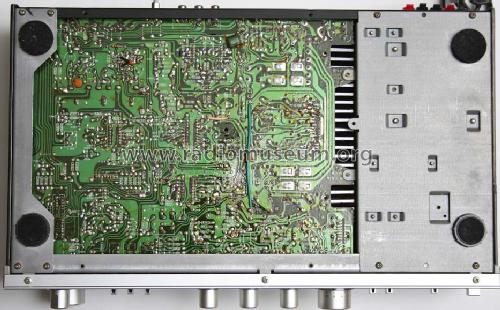

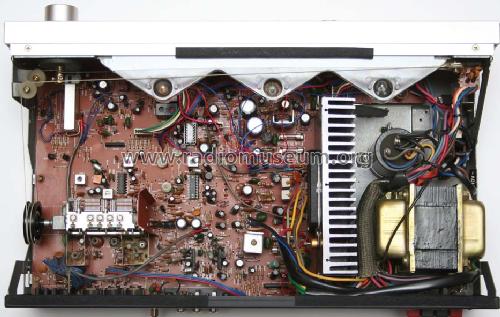

• Model: RR100 - Telefunken Deutschland TFK,

• Dimensions (WHD)
• 435 x 110 x 356 mm / 17.1 x 4.3 x 14 inch

• Notes
• IC's: TDA1046, TDA1047, LA3350, M51903L, 2xHA12017, STK463, TA7317.
  2 x 25/30W an 4 Ohm, 2 Boxenpaare anschließbar.

• Price in first year of sale
• 450.00 DM
