Klangbox RS6

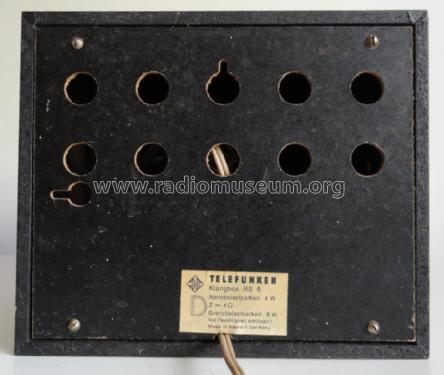

Telefunken: Klangbox RS6 [Speaker-P] ID = 2060043 1397x1142
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1969–1973 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 6 W (10 W max.) |
| from Radiomuseum.org | Model: Klangbox RS6 - Telefunken Deutschland TFK, |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 200 x 180 x 165 mm / 7.9 x 7.1 x 6.5 inch |
| Notes | Telefunken Klangbox RS6 Breitbandlautsprecher 180 x 130mm, Nennbelastbarkeit 6 Watt und Grenzbelastbarkeit 10 Watt an 4 Ohm, Übertragungsbereich 70 - 15.000 Hz. Volumen ca. 3,5 Liter, Gehäuseausführung in Nussbaum hell matt oder weiß Diese Klangbox wurde einzeln verkauft aber auch zum Telefunken Andante_Stereo_101 serienmäßig ausgeliefert. |
| Net weight (2.2 lb = 1 kg) | 1.8 kg / 3 lb 15.4 oz (3.965 lb) |
| Price in first year of sale | 62.00 DM |
| Source of data | -- Original prospect or advert |
| Mentioned in | -- Original prospect or advert (Telefunken Report 1969, Gerätekatalog 1969/70) |
Model page created by Franz Scharner. See "Data change" for further contributors.
