Rytmo 201

Rytmo 201; Telefunken (ID = 305447) Radio

Rytmo 201; Telefunken (ID = 305448) Radio

Rytmo 201; Telefunken (ID = 305815) Radio

Rytmo 201; Telefunken (ID = 305437) Radio

Rytmo 201; Telefunken (ID = 305439) Radio

Rytmo 201; Telefunken (ID = 305444) Radio

Rytmo 201; Telefunken (ID = 305441) Radio

Rytmo 201; Telefunken (ID = 305816) Radio

Rytmo 201; Telefunken (ID = 2256574) Radio
Rytmo 201; Telefunken (ID = 2256571) Radio Rytmo 201; Telefunken (ID = 2256573) Radio
Rytmo 201; Telefunken (ID = 2256572) Radio Rytmo 201; Telefunken (ID = 1174) Radio

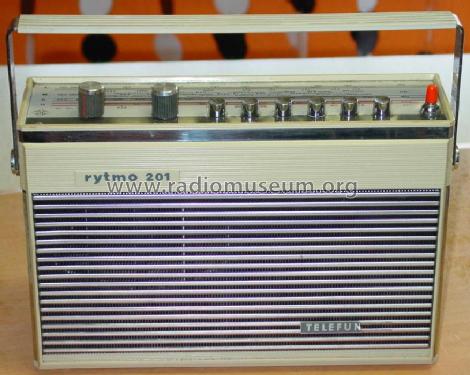

Rytmo 201; Telefunken (ID = 125333) Radio Rytmo 201; Telefunken (ID = 125334) Radio
Rytmo 201; Telefunken (ID = 306168) Radio Rytmo 201; Telefunken (ID = 903448) Radio
Rytmo 201; Telefunken (ID = 1073098) Radio Rytmo 201; Telefunken (ID = 2303403) Radio
Use red slider bar for more.
Rytmo 201; Telefunken (ID = 2256571) Radio
Telefunken: Rytmo 201 [Radio] ID = 2256571 1200x1134
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rytmo 201, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF222 BF222 BF153 BC113 BF153 BF153 BC225 BC115 AC117 AC175
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Rytmo 201 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 175 x 80 mm / 10.2 x 6.9 x 3.1 inch
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3425 models, 2993 with images and 1975 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
