S500HiFi CH= Hk2; Telefunken (ID = 753729) R-Player
Telefunken: S500HiFi CH= Hk2 [R-Player] ID = 753729 750x643
Select picture or schematic to display from thumbnails on the right and click for download.
For model S500HiFi CH= Hk2, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Q: Telefunken Service

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1974–1978 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: S500HiFi CH= Hk2 - Telefunken Deutschland TFK,
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 430 x 137 x 350 mm / 16.9 x 5.4 x 13.8 inch
Notes Tachogeregelter Gleichstrommotor, Drehzahlfeinregulierung +8,5 %; -2,8 %. Plattenteller Zinkdruckguß 2,4 kg; Laufwerk 33/45 UpM. Optische elektr.Endabschaltung, Tonarmlift.Verkauf über die Weltfunk anlässlich der Funkausstellung 1975
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 748.00 DM
Source of data Handbuch VDRG 1977/1978
Mentioned in Hifi Report 1974/75

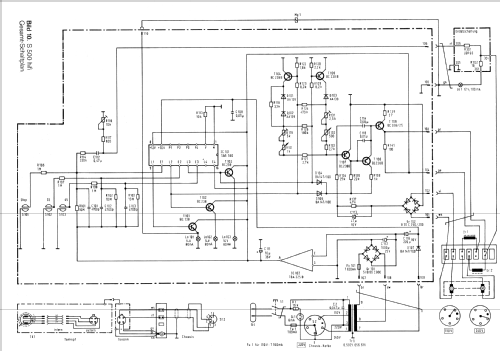

Literature/Schematics (1) -- Schematic

Model page created by Ingo Gantenbrink. See "Data change" for further contributors.



All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3471 models, 3040 with images and 2008 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken: S500HiFi CH= Hk2
Threads: 1 | Posts: 1
Hits: 2720     Replies: 0
telefunken: CH= Hk2; S500HiFi (S 500 HiFi)
Juergen Gisa
25.May.08

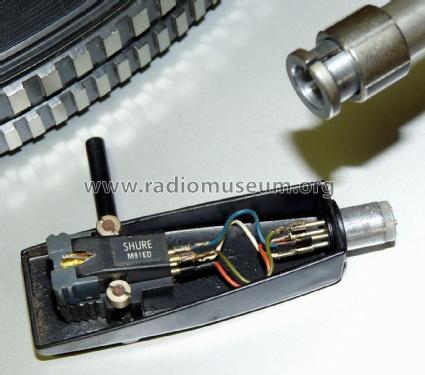

  1 Der S 500 ist vor allem bekannt und hoch gehandelt wegen des Ortofon-Tonarmes, welcher großes Ansehen genießt. Der Spieler hat eine recht ausgefeilte opto-elektronisch gesteuerte Endabschaltung mit Liftfunktion. Bei Interesse unbedingt auf funktionierenden Lift achten, verharzt oft.
