S800 HiFi; Telefunken (ID = 803143) R-Player

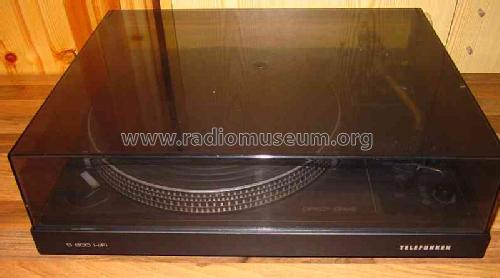

Telefunken: S800 HiFi [R-Player] ID = 803143 800x446
Select picture or schematic to display from thumbnails on the right and click for download.
For model S800 HiFi, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1978 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: S800 HiFi - Telefunken Deutschland TFK,
Material Plastics (no bakelite or catalin)
Shape Book-shelf unit.
Dimensions (WHD) 460 x 140 x 346 mm / 18.1 x 5.5 x 13.6 inch
Notes

DIN-Ausgang, "Pitch-Control", Drehzahlen 33 & 45 U/min, Rumpelgeräuschabstand > 72 dB, Alugußplattenteller 305 mm Durchmesser mit Direktantrieb.

Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Mentioned in Funkschau ((21/1978,S.1018))

Model page created by Jochen Amend. See "Data change" for further contributors.
