Schulsender AVS115

Schulsender AVS115; Telefunken (ID = 1417418) Commercial Tr
Use red slider bar for more.
Schulsender AVS115; Telefunken (ID = 1417418) Commercial Tr
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1922 Category: Commercial Transmitter (TX not Transceiver)
Valves / Tubes 4: RS5 RS5 RS5 RS5
Details
Power type and voltage Direct Current supply (DC) / 12; 440 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Schulsender AVS115 - Telefunken Deutschland TFK,
Dimensions (WHD) 1000 x 900 x 220 mm / 39.4 x 35.4 x 8.7 inch
Net weight (2.2 lb = 1 kg) 22 kg / 48 lb 7.3 oz (48.458 lb)

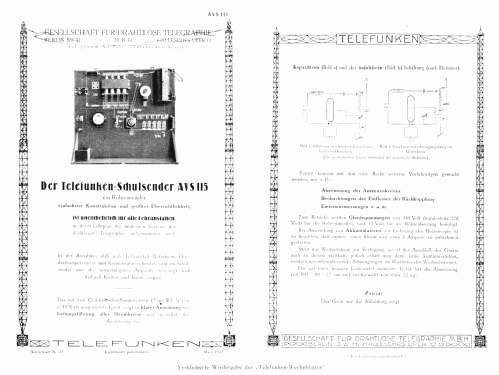

Source of data -- Original prospect or advert

Model page created by Michael Grzonka. See "Data change" for further contributors.
