- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1973 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285368

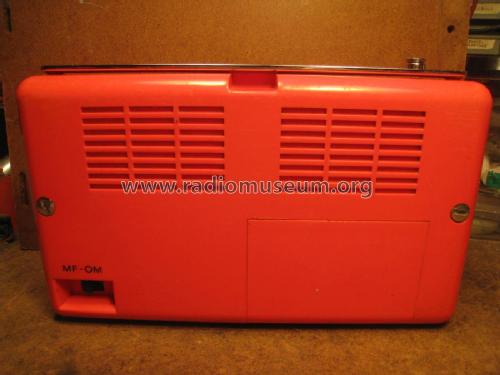

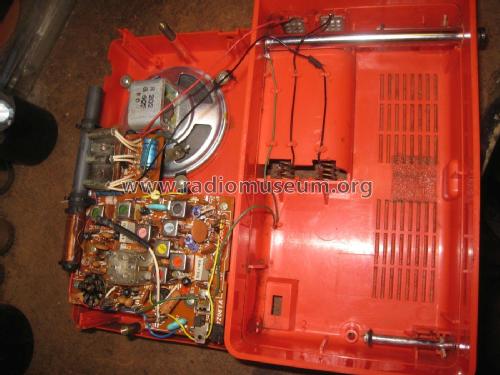

Modell "Kissy"
Modell "Kissy"
Modell "Kissy"
Modell "Kissy"
Modell "Kissy"
immagine web
- Number of Transistors
- Semiconductors present.
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: KISSY - Telefunken Italia, Milano
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 212 x 122 x 63 mm / 8.3 x 4.8 x 2.5 inch
- Notes
-
Telefunken radio AM/FM - maniglia di trasporto - controllo volume - antenna telescopica esterna - commutatore am/fm - Varianti di colore: rosso e nero-argento.
- Net weight (2.2 lb = 1 kg)
- 0.650 kg / 1 lb 6.9 oz (1.432 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
