• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62548

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12BE6 12BA6 12AV6 50B5

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

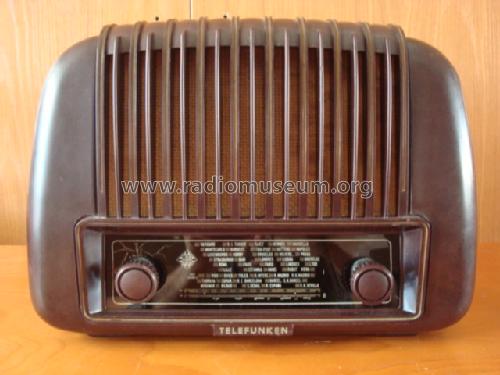

• Model: Sonata U-4165 - Telefunken Radiotécnica

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 310 x 220 x 175 mm / 12.2 x 8.7 x 6.9 inch

• Notes

• Telefunken Radiotécnica Ibérica; Sonata U-4165

  Piloto de 12V 0.1A

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 1,995.00 Ptas

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Mentioned in
• Radios españolas Joan Julià Enrich (pagina 41)

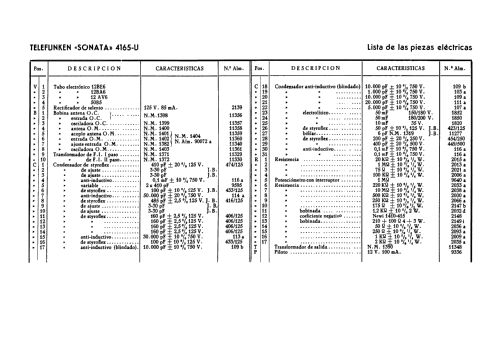

• Literature/Schematics (1)
