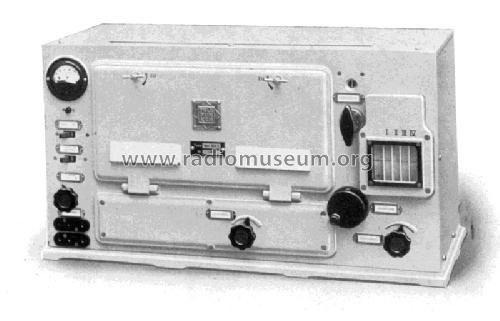

Telefunken: Spezial 924 [Commercial Re] ID = 952863 800x514
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spezial 924, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

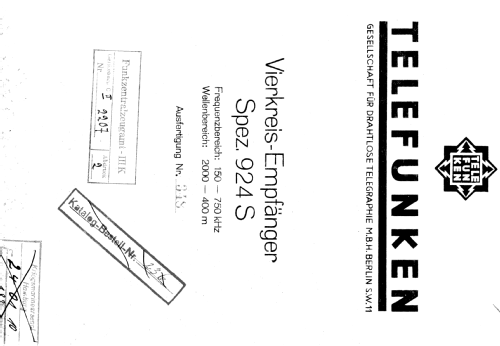

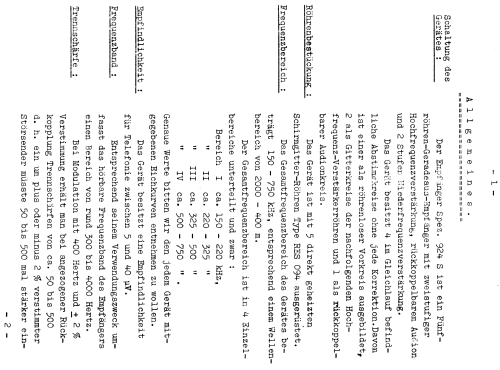

Aus Telefunken-Service-Unterlagen

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1930 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 5: RES094 RES094 RES094 RES094 RES094
Main principle TRF with regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast and LongWave in ONE range.
Details
Power type and voltage Powered by external power supply or a main unit. / 3 & 100 & 6 & 100 & 140 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Spezial 924 - Telefunken Deutschland TFK,
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 568 x 300 x 310 mm / 22.4 x 11.8 x 12.2 inch
Net weight (2.2 lb = 1 kg) 32.5 kg / 71 lb 9.4 oz (71.586 lb)
Source of data -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
