• Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 173596

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.6 cm = 3 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

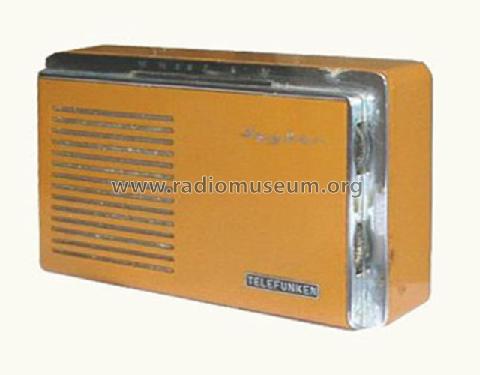

  • Model: Spyder R441 - Telefunken Italia, Milano
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 175 x 100 x 45 mm / 6.9 x 3.9 x 1.8 inch
  • Notes
  • Gamma d'onda:
    OM: 520 ÷ 1680 kHz.
  • Net weight (2.2 lb = 1 kg)
  • 0.6 kg / 1 lb 5.1 oz (1.322 lb)
  • Price in first year of sale
  • 21,900.00 ITL
  • Mentioned in
  • Catalogo ANIE 1965-66
  • Literature/Schematics (1)
  • -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 6° Antonelliana)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
