Star Partner 101; Telefunken (ID = 599674) Radio

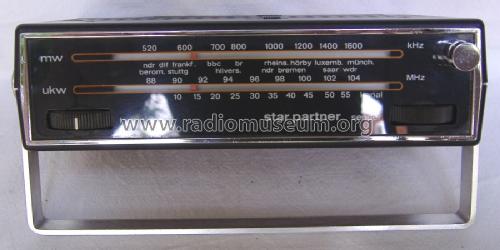

Telefunken: Star Partner 101 [Radio] ID = 599674 840x700

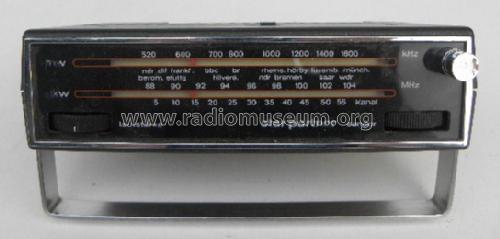

Select picture or schematic to display from thumbnails on the right and click for download.
For model Star Partner 101, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1973–1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF414 BF441 BF254 BF254 BF254 BF254 BC238 BC238 BC238 BC338 BC328
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Star Partner 101 - Telefunken Deutschland TFK,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 170 x 103 x 45 mm / 6.7 x 4.1 x 1.8 inch
Notes Alternative Transistorbestückung: MPS9625F, MPS9625F, MPS9423G, MPS9600G, MPS9423F, MPS9423F, MPS9630H, MPS9631I, MPS9431I, MPS9416AS, MPS9466AS.
Eliptical speaker 9 × 6 cm, 8 Ω, 0,3 W. NF-Ausgangsleistung bei Netzbetrieb = 0,4 W.
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in Handbuch VDRG 1975/1976


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3449 models, 3033 with images and 2025 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
