• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 363365

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Powered by external power supply or a main unit. / DC: 20 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

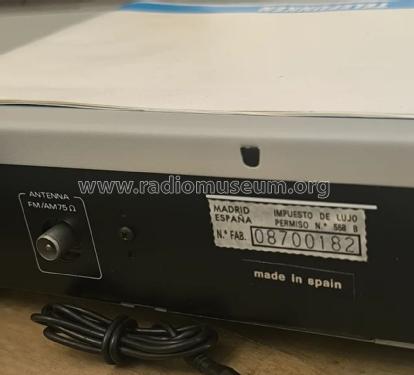

• Model: Stereo HiFi Tuner RT 52 - Telefunken Radiotécnica

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 440 x 77 x 248 mm / 17.3 x 3 x 9.8 inch

• Notes

• Telefunken Radiotécnica Ibérica; Stereo HiFi Tuner (Sintonizador ) RT-52



• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
