• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1975–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97473

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

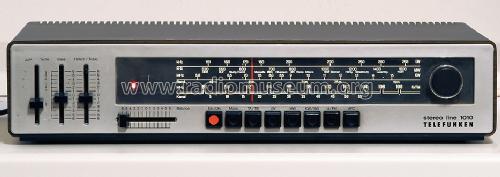

• Model: Stereo Line 1010 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 498 x 107 x 255 mm / 19.6 x 4.2 x 10 inch

• Notes
• ICs: 3.
  Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 7 W (Sinus); zwei Lautsprecherboxen RS9 (170×208×99 mm) im Lieferumfang.

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Source of data
• Handbuch VDRG 1976/1977

• Mentioned in
• Handbuch VDRG 1975/1976

• Author
• Model page created by Armin Klischat † 2.9.13. See "Data change" for further contributors.
