• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 221694

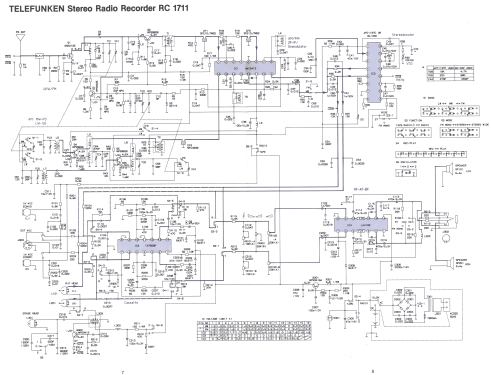

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereo Radio Recorder RC-711 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 410 x 130 x 85 mm / 16.1 x 5.1 x 3.3 inch

• Notes
• Telefunken Stereo Radio Recorder RC-711,
  Radiorekorder mit Kassetten-Laufwerk.
  2 x 2 Watt Musikleistung, 2 eingebaute Mikrofone.

• Source of data
• -- Original prospect or advert
