studio center 7004 High Com (HiFi-Chassis 1000)

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1980
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 114782

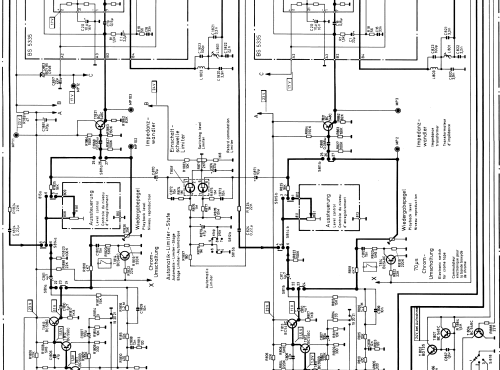

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 56
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (140 W max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: studio center 7004 High Com - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 706 x 193 x 396 mm / 27.8 x 7.6 x 15.6 inch
  • Notes

  • Stereo-Kombination mit Plattenspieler Dual 504 oder Dual 506, Geschwindigkeiten 33/45 UpM, Ortofon F15 0 Mk II; Kassettenteil HCC 6 B-H mit High Com; 7 Sensor-Stationstasten für UKW auf der Unterseite des Gerätes einstellbar; 2 schaltbare Lautsprecherausgänge. 2 x 50 Watt Sinus Ausgangsleistung (2 x 70 W Musikleistung).

    56 Transistoren (davon 5 FET), 20 ICs, 20 LEDs.

  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Jörg Kulbe. See "Data change" for further contributors.
